Poultry feed mixer is a mechanical device used to mix poultry feed. It converts raw materials such as corn, soybean meal, vitamin premix into uniform compound feed through mechanical force, which completely changes the inefficient mode of traditional manual mixing and is a key equipment to achieve accurate nutritional ratio.

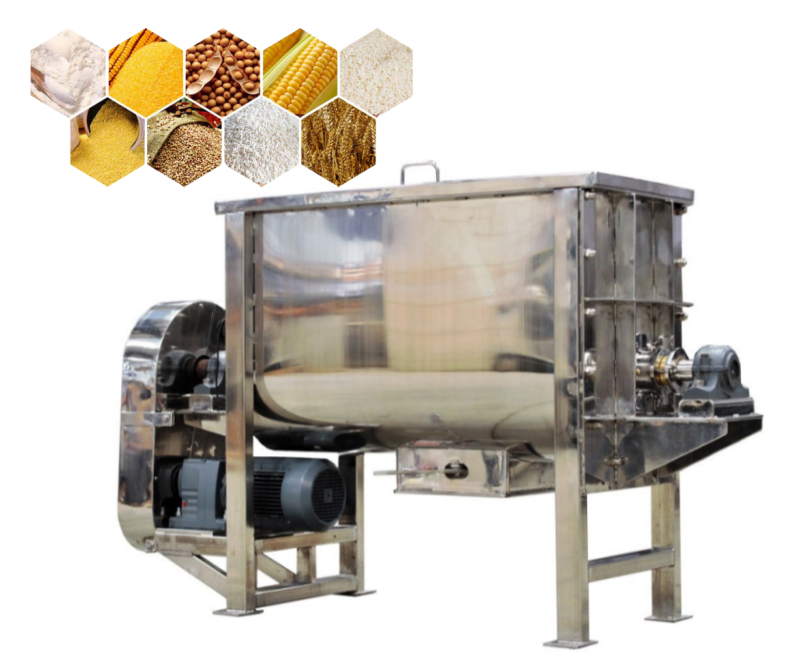

Poultry feed can mix various raw materials, such as grains, soybean meal, fish meal, fat, etc.
Family farms: For smaller family farms, family feed mixers can help farmers flexibly prepare feed according to the growth stage and nutritional needs of their poultry.
Scaled breeding enterprises: In large-scale poultry breeding enterprises, enterprises need to consume a large amount of feed every day. The use of feed mixers for centralized production and preparation can achieve standardization, scale and efficiency of feed production.

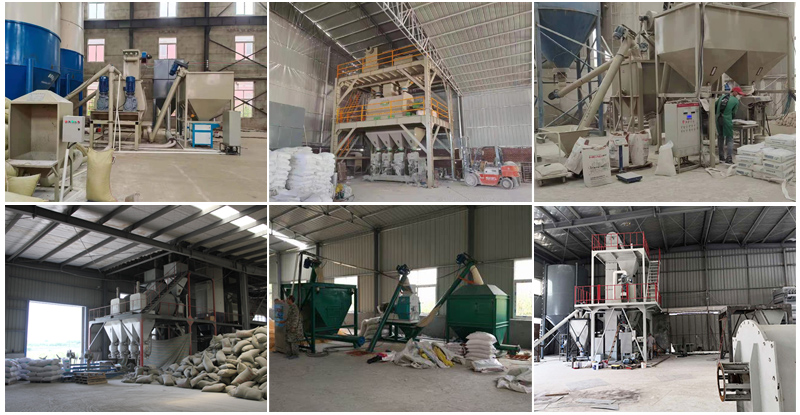

Feed processing plants: Poultry feed mixers are also one of the core equipment of feed processing plants. Feed processing plants need to mix and process feed raw materials from various sources to produce various types of family feed products that meet market demand.
Improve the uniformity of feed: Using feed mixers can ensure that each poultry can take in balanced nutrition and avoid poor growth and development caused by uneven nutrition.
Improve the palatability of feed: Evenly mixed feed tastes better and can increase the feed intake of poultry.
Improve feed utilization: Evenly mixed feed is easier for poultry to digest and absorb, improving feed conversion rate.
Save feed costs: Through precise proportioning and even mixing, reduce feed waste and reduce breeding costs.
| Comparison Items | Single - shaft Mixer | Double - shaft Mixer |

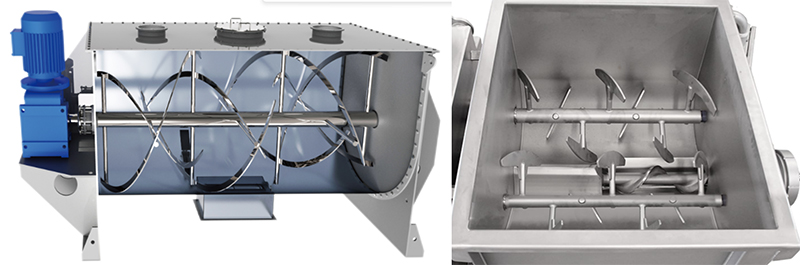

| Structure and Working Principle | There is only one shaft in the mixing chamber, with spiral blades or paddles installed on the shaft. The motor drives the mixing shaft to rotate at high speed, and the blades push and stir the raw materials, making them intermingle. | There are two parallel shafts in the mixing chamber, with paddle blades and other components installed on the shafts. The two shafts rotate in opposite directions, and the paddle blades drive the materials to circulate and stir axially and radially, forming a three - dimensional mixing motion. |
| Mixing Effect | It has a good mixing effect on general raw materials with small differences in particle size and density, and the mixing speed is relatively fast. However, when dealing with a variety of raw materials with large differences in particle size and density, it is difficult to achieve a very high mixing uniformity in a short time. | The overall mixing effect is better. The unique structure makes the material movement trajectory complex, and it can fully mix powder, granular materials, and feeds with liquid components, effectively ensuring the consistency of nutritional components in the feed. The coefficient of variation (CV) of mixing uniformity can reach 2% - 5%. |
When the motor starts, the transmission device drives the main shaft to rotate, and the mixing blades or mixing arms rotate accordingly.
The poultry feed raw materials are loaded into the casing. As the main shaft rotates, the mixing blades or mixing arms continuously turn the raw materials up, press down, and stir them left and right, so that the raw materials are mixed evenly.
| Model | LHY-0.25 | LHY-0.5 | LHY-1 | LHY-1.5 | LHY-2 | LHY-3 | LHY-4 | LHY-6 | LHY-8 | LHY-10 |
| One-time mixing (kg) | 100-150 | 200-300 | 400-600 | 600-900 | 800-1000 | 1200-1800 | 1600-2400 | 2400-3600 | 3200-4800 | 4000-6000 |
| Mixing time (min) | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 |
| Mixing speed (r/min) | 60 | 55 | 45 | 40 | 35 | 25 | 25 | 20 | 15 | 15 |
| Motor power (kw) | 3-5.5 | 4-11 | 7.5-15 | 11-18.5 | 15-22 | 18.5-30 | 22-37 | 37-55 | 37-55 | 45-75 |
| Weight (kg) | 500 | 900 | 1800 | 2500 | 3200 | 4100 | 5100 | 6300 | 7500 |

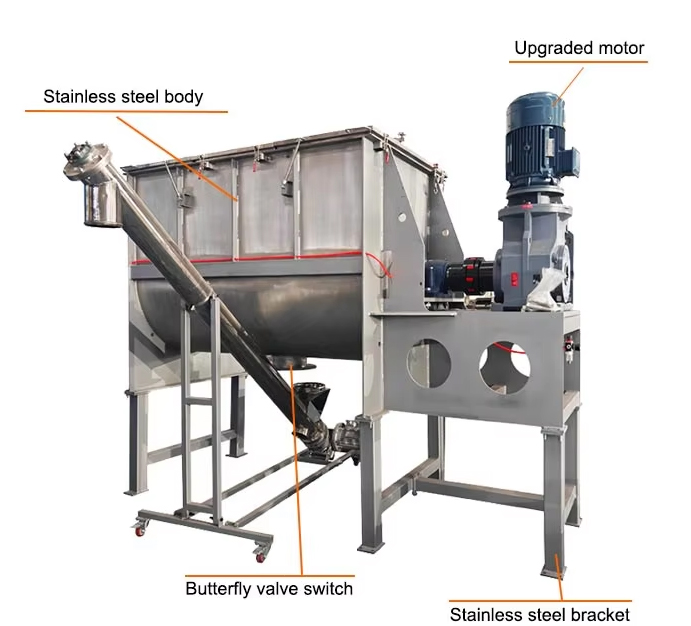

Poultry feed mixer is a device used to mix and stir poultry feed raw materials, usually composed of multiple components. The following are the main components of poultry feed mixer:
Casing:The external structure of the poultry feed mixer, usually a closed container for containing and mixing feed raw materials.
Spindle:The main shaft located in the casing, the main function of which is to support the mixing blades and is driven to rotate by the motor.
Mixing blades/mixing arms: Mixing elements installed on the main shaft, used to mix and stir feed raw materials.
Transmission device: a device used to transmit the power of the motor to the main shaft to drive the mixing blades or mixing arms to rotate.
Motor: an electric motor that provides power to drive the mixer, usually installed outside or above the casing, to drive the main shaft to rotate.
Feed port and discharge port: ports for feeding feed raw materials and discharging mixed feed. The feed port is usually located at the top of the casing, and the discharge port is located at the bottom or side.
We focus on the research and development, production and sales of various feed mixers. With years of professional experience, we accurately grasp the market demand and provide high-quality products and services for farmers and feed processing companies. In terms of product prices, we fully consider the needs and budgets of different customer groups. Single-shaft poultry feed mixers are relatively cheap because of their relatively simple structure and convenient operation. This type of product is particularly suitable for small family farms, can meet the needs of small-scale feed mixing, and help farmers achieve scientific feed formulation at a lower cost. The double-shaft poultry feed mixer has a better mixing effect and higher production efficiency due to its advanced double-shaft design. It is suitable for large-scale breeding enterprises and feed processing plants. The price is relatively high, but from the perspective of long-term use and improved production efficiency, it has a very high cost performance. Due to different models, the price will also fluctuate. If you have any needs, please feel free to contact me for a price list
