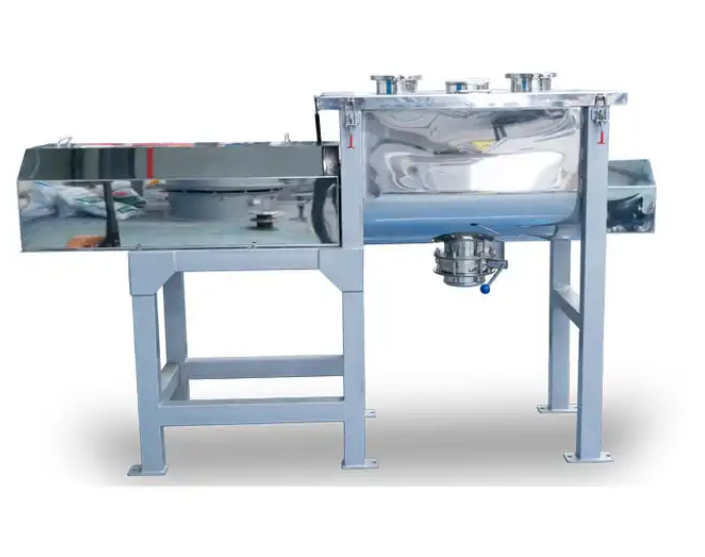

The small horizontal feed ribbon mixer is a device that uses ribbon rotating mixing blades to uniformly mix materials. It is suitable for feed, food, chemical, pharmaceutical and other industries. It is characterized by compact structure, simple operation, high mixing uniformity, large output, energy saving and environmental protection.

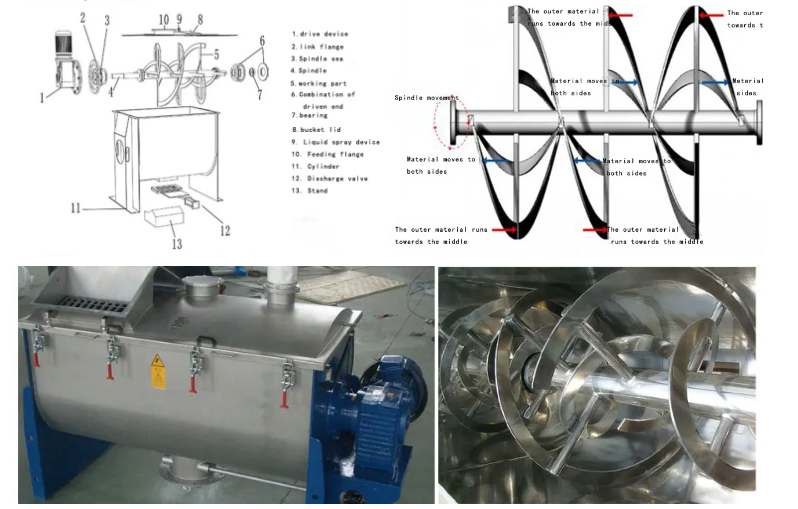

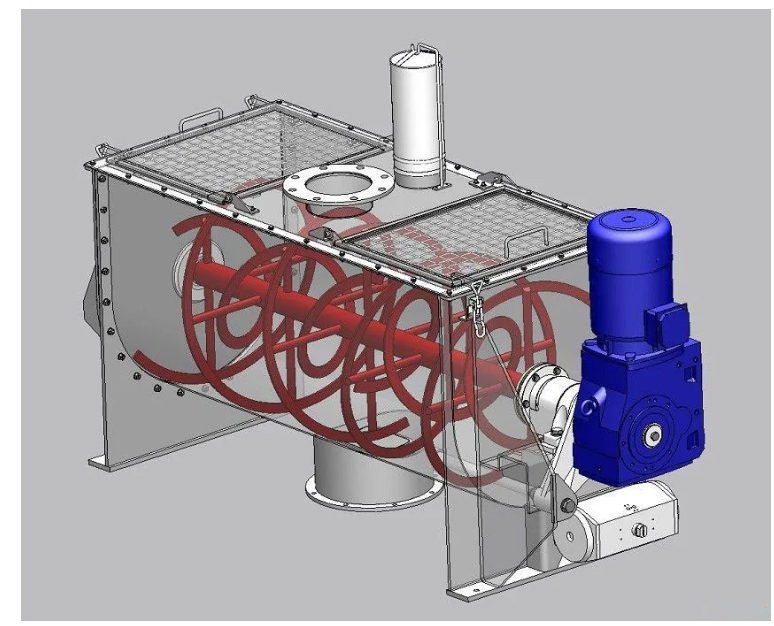

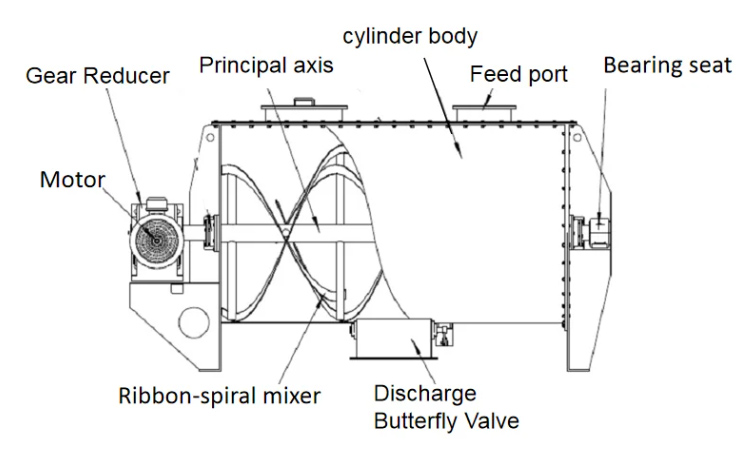

The small horizontal feed ribbon mixer is mainly composed of a frame, a mixing barrel, a ribbon mixing blade, a transmission device, a feed port, and a discharge port.
1. Frame: The frame is the support structure of the mixer and plays a role in fixing and protecting the mixing barrel. The frame is made of welded steel plates, which is strong and durable.

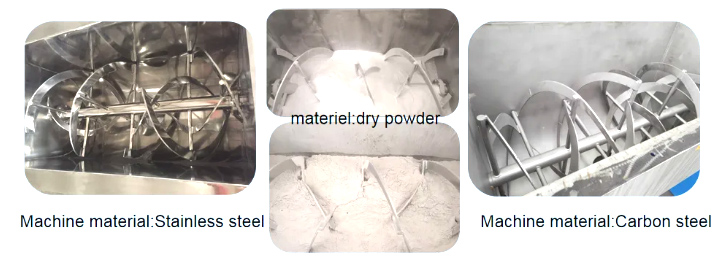

2. Mixing drum: The mixing drum is the main body of material mixing and is made of stainless steel or carbon steel. The mixing barrel is in the shape of a horizontal cylindrical shape, with a smooth inner wall and no dead ends, which facilitates the mixing and unloading of materials.

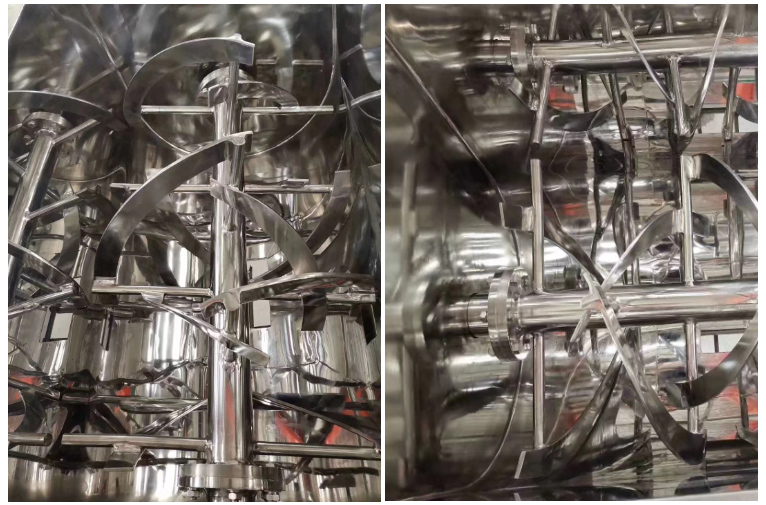

3. Ribbon mixing blade: The ribbon mixing blade is the core component of the mixer and is responsible for stirring and mixing of materials. The spiral mixing blades are composed of spiral blades with a certain gap between the blades to allow the material to fully flow and mix in the mixing cylinder.
4. Transmission device: The transmission device is responsible for driving the spiral belt mixing blade to rotate to achieve the mixing of materials. The transmission device consists of motor, reducer and coupling. The motor drives the reducer to rotate, and the reducer drives the spiral belt mixing blade to rotate.
5. Feed port: The feed port is the channel through which materials enter the mixing barrel and is located at one end of the mixing barrel. The size and shape of the feed port are determined according to the nature of the material and the mixing requirements.
6. Discharge port: The discharge port is the channel through which materials are discharged from the mixing barrel and is located at the other end of the mixing barrel. The size and shape of the discharge port are determined according to the nature of the material and the mixing requirements.
The small horizontal feed ribbon mixer uses the rotation of the spiral blades to push and turn the feed raw materials along the direction of the spiral blades, thereby achieving uniform mixing of the feed raw materials. During the mixing process, the spiral blades continuously lift and throw the feed ingredients, causing them to form a circular flow inside the machine, thereby fully mixing the various ingredients.
Uniform mixing: The small horizontal feed ribbon mixer uses the turning and throwing action of the spiral blades to fully mix the feed ingredients, ensure the even distribution of various ingredients, and improve the quality and nutritional value of the feed.
High efficiency and energy saving: This model has the characteristics of high mixing efficiency and low energy consumption, which can greatly reduce energy consumption, improve production efficiency and reduce production costs.
Easy operation: The small horizontal feed ribbon mixer has a simple structure and is easy to operate. You only need to put the feed raw materials into the feed port and start the machine through the control switch to complete the mixing process.
Compact structure: This model is compact in size and occupies a small area. It is suitable for places with limited space and is convenient for layout and installation.
Easy maintenance: The maintenance of the small horizontal feed ribbon mixer is relatively simple, mainly including regular cleaning, lubrication and inspection of the transmission device, etc., which can extend the service life of the machine.
Small horizontal feed ribbon mixer is widely used in feed, food, chemical, pharmaceutical and other industries. It is mainly used for mixing the following materials:
1. Feed: compound feed, concentrated feed, premix, etc.
2. Food: flour, starch, sugar, salt, condiments, etc.
3. Chemical industry: plastic particles, pigments, dyes, additives, etc.
4. Pharmaceuticals: powder raw materials, tablets, capsules, etc.
When purchasing a small horizontal feed ribbon mixer, you need to consider the following factors:
1. Properties of the mixed materials: including particle size, density, fluidity, etc. of the materials.
2. Mixing requirements: including mixing uniformity, mixing time, etc.
3. Output requirements: that is, the quantity of materials that need to be mixed per hour.
4. Working environment: including temperature, humidity, dust, etc.
5. Budget: The budget amount for purchasing the mixer.

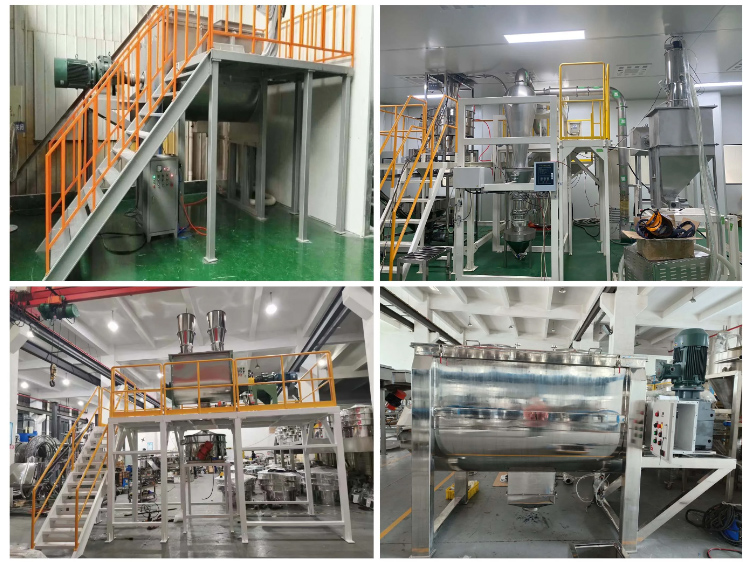

Small horizontal feed ribbon mixers are widely used in the feed processing industry and can meet the feed mixing needs of farms of different sizes.
